How to process the Execution of Shallow Foundation Work on construction site


S.N.
      Contents

                    (A)  Introduction


                    (B).     Stages of process of execution of foundation work on site
            1.) Excavations
            2.) Anti –termite treatment
                   a) What is termite
                   b) What is the purpose of Anti-termite treatment for any structure?

                                3) Shuttering
                                4) Polythene Sheet
                                     a)Purposes of polythene sheet
                                5)  Plain  Cement Concrete (P.C.C Bed)

                                6)   R.C.C. Footing
                               7)   Marking Center line.

                                8)   Neck Column
                                9)  Concreting

                               10)  Bitumen Paint

                   a)Purposes of Bitumen Paint.

(A)Introduction:

Execution of foundation work is quite crucial for structure. Foundation is the initial phase of the construction which receives all the loads from the superstructure. It plays important role to keep the structure safe. In this
articles of I have included the steps or procedure of foundation work on the site.

(B) Stages of Execution of Foundation work


This stage of the execution of the foundation may differ according to the state and company strategy.

1.Excavations:

Excavation is the preliminary step of construction. Excavation is the process of removing unnecessary   soil mass from its original location. Removed Soil mass is required for back fill or grade fill. Excavation is generally Bulk excavation, trench excavation and pit excavation. Excavation is done as per the engineering report or as per Engineer suggestions.
                                                       Pits of Isolated Footing

2. .Anti-Termite Treatment

Termite control is the second step of executing the shallow foundation at construction site. After the excavation compaction is done on the foundations surfaces.

a)What is termite?

Termite is renowned as “Silent killer or silent destroyer” because it damages the structure. Termite eats wood, plastics fabric from plants, wallpaper.

Termites or Germs



b)What is the Purpose of Anti-Termite Treatment for any Structure?

 Termite is the main purposes of providing the anti-termite treatment is to protect the structure from sub terrain termites. Anti termite is in the form of liquid which sprayed on the earth and kept it open to the atmosphere for 24 hours.Anti –termite treatment is sprayed all the side and bottom portion of excavation.

Spraying Anti-termite

3.       Shuttering :

Shuttering is done at all the sides of the foundations for concreting and required shape. Excavations are done at least 1 foot extra from the actual width and length of the foundation because of easy placing and removing of shuttering.

4.       Polythene sheet:

This is the third step of process of execution of work on site. Polythene sheet is laid on the surface of ground after the Anti termite treatment. The size of polythene sheet ranges from 2 mm to 6 mm thick.

a)Purposes of polythene sheet

Polythene sheet is act as damp proof membrane. Polythene sheet helps to control seepage of water into the bottom of the foundation. In initial stage of concrete, the water from the concrete will come out and it will soaked by the ground then it loses it strength and workability.So prevent the concrete property polythene sheet is provided.

5.       Plain cement Concrete (P.C.C. ):

Plain cement is the mixture of cement, sand, and aggregate without reinforcement. In execution of foundation work, the Grade of concrete used is
Grade of concrete   =M 7.5
Proportion of concrete= 1:4:8
1= cement
2= fine aggregate
4 = Coarse aggregate
Amount of water in liter required cement content and water cement ratio. The thickness of PCC is 10 cm.

6.       Implementation of Reinforcement :

In foundation work reinforcement is provided in both the direction .One direction bar is main bar and another direction bar is distribution bar or Binders. This Reinforcement is withstands by the concrete cover blocks
The minimum thickness of cover to main reinforcement shall not be less than 50 mm to surface contact with the earth surface.
                                     Reinforcement laid for the foundation

7.       Marking Center line:

Center line is marked as per structural drawing. Longitudinal Bar is positioned and the development length of the bar is tied with laid reinforcement.

8.       Neck  Column:

Neck column is extended up to the plinth level. It is the portion or parts of the column between the top of the footing to ground beam.

9.       Concreting:

After doing Reinforcement and column extension concreting is done properly.




10.   Bitumen Paint:

After neck column is constructed then bitumen paint is done. It is black color paint and painted over the structure before the back filling of soil.
                                                            Bitumen Paint

a)Why we provide the Bitumen Paint ?

a)      Bitumen is act as water proofing material and weather protecting.
b)      It imparts strength.
c)       It protects the structure from the corrosion.
d)      It is done all around the structure.


 Related Posts:

11 types of Wall used in the construction and their Silent Features

How to calculate Weinght of RCC hume Pipe in kg / m

Don't Forget to add your valuable comment

How to calculate the weight of Reinforced concrete Hume pipe


Hello Civil Engineers, are you confused that what Hume Pipe is. If you have doubts, this article quite helpful for you. In this article I have explained how to calculate the weight of Reinforced Hume Pipe

What is Lobby,loft,ledge,Porch,patio,canopy in Architectural Drawing



In this article you will know about the basic terminology of Building. This article is quite important so that the fresher students will give more concern about the term used in the architectural drawings.

Before you go through the articles I recommend you to read "10 terms you should know before reading the floor plan of the Buildings."

Let us know what is Lobby, corridor, ledge,Loft courtyard,canopy,patio,porch and their uses.

1.   Lobby:


A Lobby is space which is inside the building and used for entering into the building. In the most of big complex, cinema, theater, big hotels, apartment etc. lobbies is made and Receptionist is available to welcome the guests and for queries too. Lobby is well decorated and well managed place and have good furniture to stay the people.

2.Corridor:


Corridor is the space between two walls of rooms. The main purpose of corridor is for movement of people and another purpose of Corridor is for natural air and sunlight. Small space for Corridor results the difficulty in walking of people. Corridor is also called passage of floor.


3. Ledge:


Ledge is small horizontal surface which is external from the wall of building.

In case Building, Ledge can be defined in two ways. First in terms interior part of building and second one is exterior part. Ledge is provided in both part of the Building but the purpose of both is different.


In case of interior part of part of the building, Ledge is defined as small horizontal surface which is extended from the wall of the buildings. Ledge helps to carry the small stuffs.

In case Exterior part of building, Ledge is defined as the small horizontal surfaces which projected externally and used for Finishing work and other purpose.


4. Courtyard:

Courtyard is the building part which is enclosed by the buildings and it is open to the sky. This courtyard is generally takes place inside the building or outside the building .i.e. within the compound wall or boundary wall.
Courtyard is provided for sunlight , meeting, etc. any other purposes.

5. Canopy:

Canopy is building parts terminology which is takes place at entrance gate of the buildings. It is the projections from the wall at entrance point to the building to the lintel level.

6. Loft:

It is one types of slab which is generally takes place at intermediate between two floors. The main purposes of loft Slab is to store the material or stuffs.

Loft slab is caste at the lintel level but in the kitchen, loft slab is genially caste 3’ from the floor level.

7. Mumti:

Mumti is the covering roof of the staircase. It is also called stair cover. Mumti is generally provided for the protection of sunlight, rain, wind, security and other purposes.

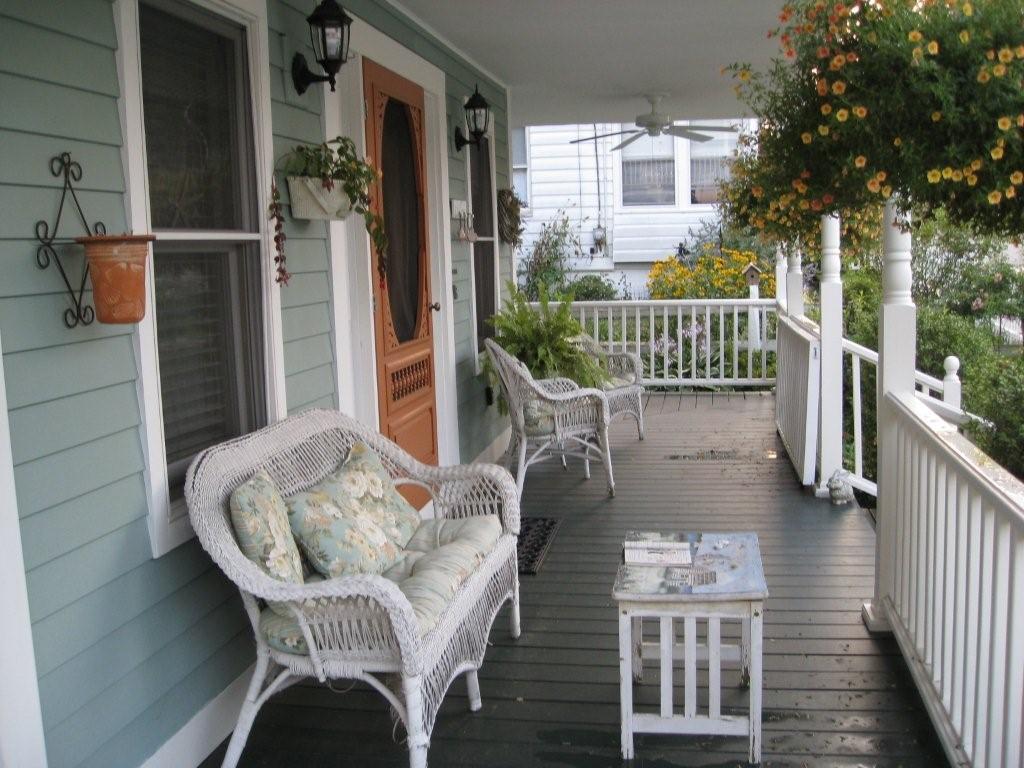

8. Porch:
